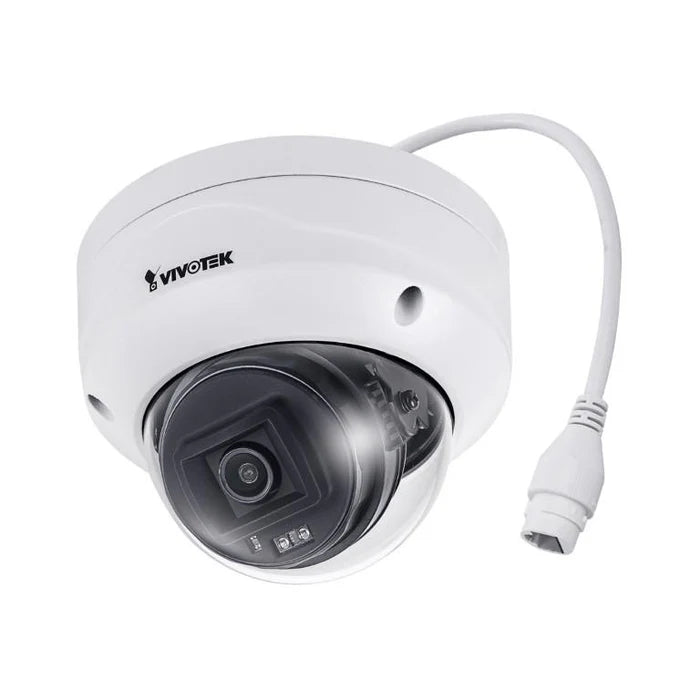

Vivotek Outdoor IK10 Dome H.265 5MP IP camera with 2.8-12mm Remote Focus lens

Overview:

FD9388-HTV - 5MP, H.265, 2.8~12 mm, 30M IR, SNV, WDR Pro

• H.265, H.264, MJPEG
• SNV
• WDR Pro
• Smart Stream III
• Smart IR
• Trend Micro IoT Security

VIVOTEKs FD9388-HTV is a H.265 outdoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9388-HTV is capable of capturing high-quality imagery in both high contrast and low light environments.

The FD9388-HTV deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the FD9388-HTV is encased in IP66 and IK10 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9388-HTV is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

Features:

• H.265 Compression Technology
• 20 fps @ 2560x1920 (WDR Pro on)
• 2.8~12 mm, Remote Focus
• SNV (Supreme Night Visibility) for Low Light Conditions
• WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
• Smart Stream III to Optimize Bandwidth Efficiency
• Built-in IR Illuminators, Effective up to 30 Meters
• Trend Micro IoT Security
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Built-in Microphone

Specifications:

Product Code	VIVOTEK FD9388-HTV
System Information
Model	FD9388-HTV
CPU	Multimedia SoC (System-on-Chip)
Flash	128MB
RAM	512MB
Camera Features
Image Sensor	1/2.7" Progressive CMOS
Max. Resolution	2560x1920 (5MP)
Lens Type	Motorized, Vari-focal, Remote Focus
Focal Length	f = 2.8 ~ 12 mm
Aperture	F1.4 ~ F2.8
Auto-iris	Fixed-iris
Field of View	30°~90° (Horizontal)
	23°~65° (Vertical)
	38°~115° (Diagonal)
Shutter Time	1/5 sec. to 1/32, 000 sec.
WDR Technology	WDR Pro
Day/Night	Yes
Removable IR-cut Filter	Yes
IR Illuminators	Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2
Minimum Illumination	0.035 lux @ F1.4 (Color)
	<0.005 lux @ F1.4 (B/W)
	0 Lux with IR illumination on
Pan Range	353°
Tilt Range	75°
Rotation Range	350°
Pan/Tilt/Zoom Functionalities	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage	Slot Type: MicroSD/SDHC/SDXC card slot
	Seamless Recording
Video
Video Compression	H.265, H.264, MJPEG
Maximum Frame Rate	20 fps @ 2560x1920
Maximum Streams	3 simultaneous streams
S/N Ratio	61 dB
Dynamic Range	120 dB
Video Streaming	Adjustable resolution, quality and bitrate, Smart Stream III
Image Settings	Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, HLC, defog, 3DNR, video rotation
Audio
Audio Capability	One-way Audio
Audio Compression	G.711, G.726
Audio Interface	Built-in microphone
Effective Range	5 meters
Network
Users	Live viewing for up to 10 clients
Protocols	802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface	10 Base-T/100 Base-TX Ethernet (RJ-45)
	*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF	Supported
Solution Integration
Video Motion Detection	Five-window video motion detection
VADP Package	Trend Micro IoT Security, Stratocast
Alarm and Event
Alarm Triggers	Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Alarm Events	Event notification via email, HTTP, FTP, NAS server, SD card
	File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors	RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator	System power and status indicator
Power Input	IEEE 802.3af PoE Class 0
Power Consumption	Max. 12.95 W (IR on)
	Max. 9 W (IR off)
Dimensions	ø 133.7 x 103.8 mm
Weight	819 g
Casing	IP66, IK10
Safety Certifications	CE, FCC Class B, UL, LVD, VCCI, C-Tick
Operating Temperature	Starting Temperature:
	-10°C ~ 60°C (14°F ~ 140°F)
	Working Temperature:
	-30°C ~ 60°C (-22°F ~ 140°F)
Humidity	90%
System Requirements
Operating System	Microsoft Windows 8/7
	Mac 10.12 (Chrome only)
Web Browser	Chrome 58.0 or above
	Internet Explorer 10/11
Other Players	VLC: 1.1.11 or above
Included Accessories
Others	Quick installation guide, alignment sticker, screw pack, cable gland
