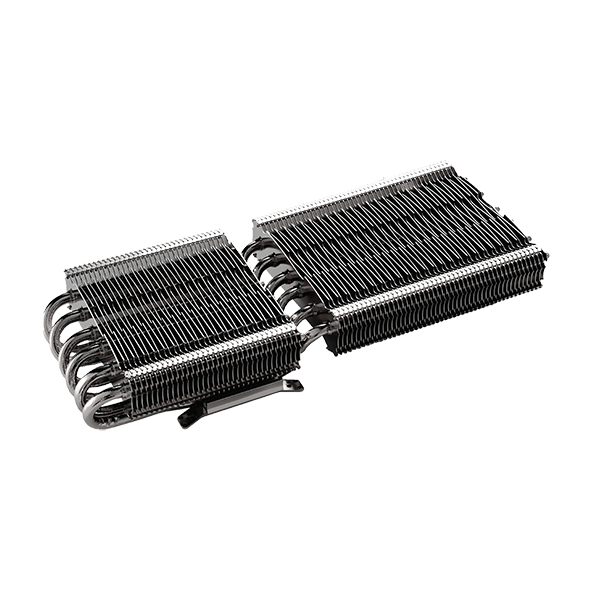

Deepcool Dracula Graphics Card Cooler

The Deepcool Dracula Graphics Card Cooler has a nickel-plated copper base with six large 6mm copper heat pipes and two sets of aluminum cooling fins. The Dracula also comes with a fan mounting system that can support three 140 or four 120mm fans. Dracula can mount up to many different video cards from both ATI/AMD and Nvidia.

Application For

43mm Mounting holes

• ATI Radeon HD 5770/5750/5670
• ATI Radeon HD 2600 Series
• ATI Radeon X1600 Series
• NVIDIA Geforce 8600/8500/8400/7600/7400/7300 Series
• NVIDIA Geforce 6600 Series (Except 6600 AGP Series)

53mm Mounting holes

ATI Radeon HD 6950/6970/6850/6870/5870/5850/
4870/4860/4850/4830/4750/4670/4650/3870/

3850/3690/3650/3450

• ATI Radeon X1900 Series
• NVIDIA Geforce GT 210/220/240
• NVIDIA Geforce GTS 250
• NVIDIA Geforce 9800 GTX+GTX/GT
• NVIDIA Geforce 9600 GT
• NVIDIA Geforce 8800GT/GTS(G92)
• NVIDIA Geforce 7900 GTX/GT/GS
• NVIDIA Geforce 7800 GTX/GT
• NVIDIA Geforce 6600 Series(Except 6600 AGP Series)

51mm/61mm Mounting holes

• NVIDIA Geforce GTX 200 Series

80mm Mounting holes

• NVIDIA Geforce 7600 Series
• NVIDIA Geforce 7400 Series

51-61mm Mounting holes

• NVIDIA Geforce GTX 460
• NVIDIA GTX560

58mm Mounting holes

• NVIDIA GTX 470/480
• NVIDIA GTX 570/580
• NVIDIA Geforce 8800 GTX
• NVIDIA Geforce 8800 Ultra

54mm Mounting holes

• AMD HD7970/7950

Specifications

• Heatsink Dimension - 254X100X43.5mm
• Heatsink Weight - 556g
• Net Weight - 994g
• Heatpipe - 12X6mm
• Suggested Fan - 140X25mm/120X25mm
• Suggested Fan Speed - 600 - 1500 RPM
