High-Performance Industrial PoE Networking

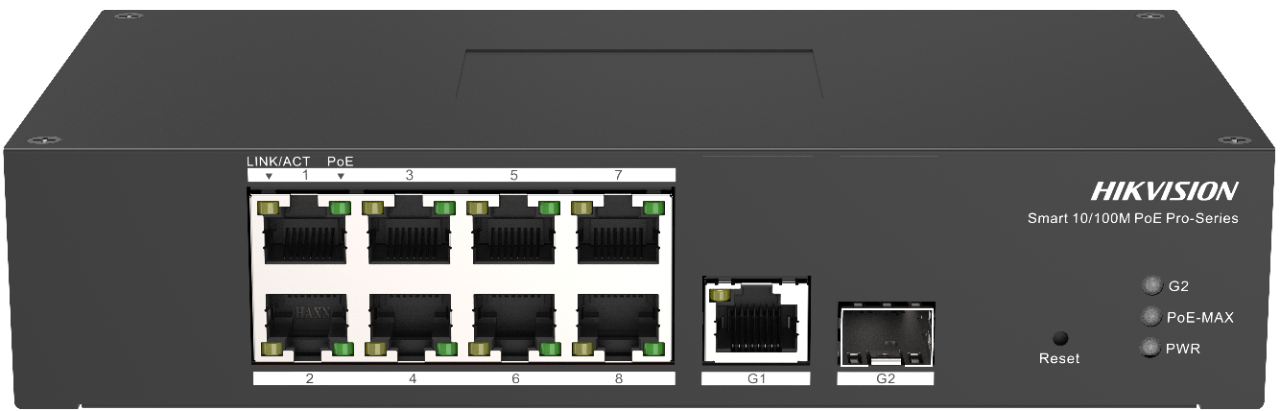

The Hikvision DS-3T1310P-SI/HS is a compact, smart-managed PoE switch built for professional surveillance and industrial networks. With eight 10/100 Mbps PoE ports, a Gigabit RJ45 uplink, and a Gigabit SFP slot, it delivers reliable connectivity and intelligent management features in a rugged IP40 metal enclosure.

Key Features

• 8 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 uplink, 1 × Gigabit SFP uplink
• Supports IEEE 802.3af/at with up to 30 W per port and 110 W total PoE budget
• Extended range mode up to 300 m on ports 1-8 for long-distance IP cameras
• Layer 2 smart management including VLAN, QoS, SNMP, STP/RSTP and link aggregation
• Automatic PoE watchdog for device recovery and link stability
• Industrial design rated for –30 °C to 65 °C operation (IP40 metal housing)
• DIN-rail and desktop mounting options included

Specifications

• Model: DS-3T1310P-SI/HS
• GTIN: 6931847175481
• Ports: 8 × 10/100 Mbps PoE + 1 × Gigabit RJ45 + 1 × Gigabit SFP
• PoE Standard: IEEE 802.3af/at (30 W per port, 110 W total)
• Switching Capacity: 9.2 Gbps Forwarding Rate: 6.84 Mpps
• MAC Table: 16 K Buffer Memory: 4 Mbit
• Power Supply: 48 V DC / 2.5 A (max 120 W)
• Operating Temperature: –30 °C to 65 °C
• Dimensions: 197 × 114.2 × 42.2 mm Weight: 0.6 kg
• Material: Metal (IP40 rating)
• Certifications: CE, RoHS, REACH
