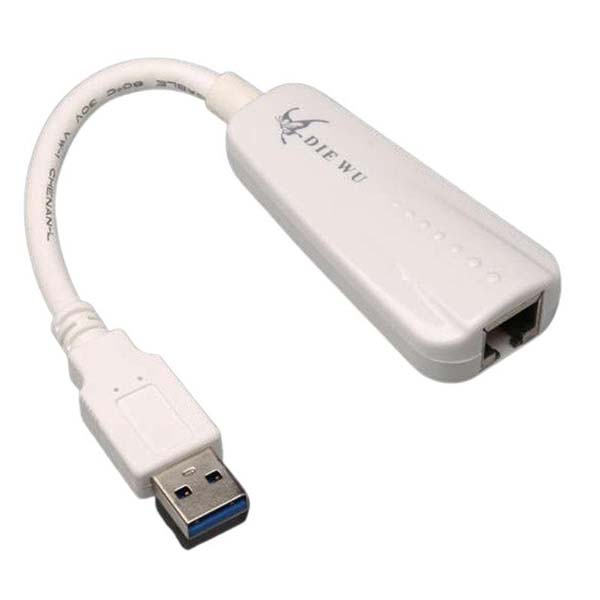

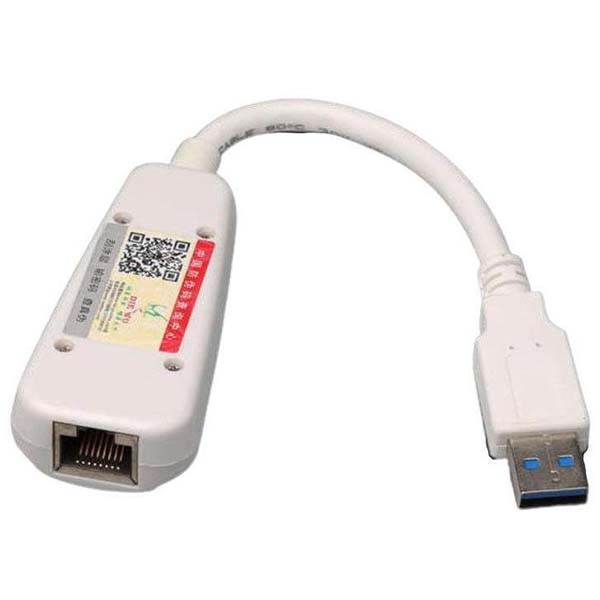

USB 3 GIGABIT LAN ADAPTOR - TXA042

Model number: TXA042

Chipset Realtek: RTL8153

Port number: 1 x RJ45

Standard: IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.1P, IEEE 802.1Q VLAN tagging

IEEE 802.3az-2010 (EEE)

Network media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data rate: 10/100M/1000Mbps

Interface: USB3.0

Color: Black, white

LED Indicator: Link/ACT

Dimension: 70 x 32.5 x 17mm,USB cable:150mm

Support OS

Windows 10 8.1 8 32-bit 64-bit Plug in Play Native Driver No installation Needed

Windows 7 Vista XP Compatible

Environment

Operating Temperature: 0 ?-55 ?

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -0?-80?

Relative Humidity: 5%-90%(non-condensing)

Other features

plug and play

Wake-On-LAN

Flow control

Auto-Negotiation with Next Page capability

Selective suspend

Remote wake-up

ECMA

Half Duplex and Full Duplex Mode

Feature:

Hardware

Integrated 10/100/1000M transceiver

Auto-Negotiation with Next Page capability

Supports USB 3.0, 2.0, and 1.1

Supports CDC-ECM

Supports LPM (Link Power Management)

Supports pair swap/polarity/skew correction

Crossover Detection & Auto-Correction

Supports Wake-On-LAN and ?RealWoW!? (Wake-On-WAN) Technology (see note 1)

Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts (see note 1)

XTAL-Less Wake-On-LAN

Supports power down/link down power saving

Transmit/Receive on-chip buffer support

EEPROM Interface

Embedded OTP memory can replace external EEPROM

Built-in switching regulator and LDO regulator

Supports Customizable LEDs

Supports hardware CRC (Cyclic Redundancy Check) function

LAN disable with GPIO pin

Supports 25MHz or 48MHz external clock (from oscillator or system clock source)

SPI Flash Interface

48-pin QFN ?Green? package

Note 1. Select between RealWoW! or ECMA, only one feature can be active at a time

Software Offload

Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send

v1 and Large send v2) support

Supports jumbo frame to 9K bytes

Microsoft AOAC (Always On Always Connected)

Supports 16-set 128-byte Wake-Up Frame pattern exact matching

Supports link change wake up

Supports Microsoft WPD (Wake Packet Detection)

Supports Protocol Offload (ARP & NS)

Intel CPPM (Converged Platform Power Management)

Supports L1 with 3ms BESL (USB 2.0)

Dynamic LTM messaging (USB 3.0)

Supports U1/U2 (USB 3.0)

Supports selective suspend
