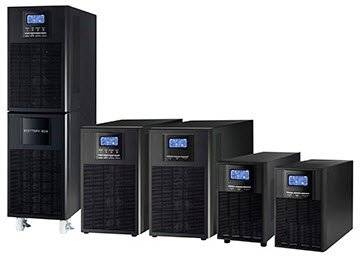

RCT 6000VA / 4800W Online Tower UPS
RCT 6000VA / 4800W Online Tower UPS
Portable Power
SKU:RCT-6000-WPTU
Regular price
R 14,300.00
Regular price
R 0.00
Sale price
R 14,300.00
Taxes included.
Shipping calculated at checkout.
Online Only
Loading recommendations...
Quantity
Nationwide delivery
Delivery calculated at checkout. Shipping info
Delivery calculated at checkout. Shipping info
Secure checkout
Pay securely with trusted payment providers.
Pay securely with trusted payment providers.
Warranty & returns
Warranty included. Returns policy
Warranty included. Returns policy
Buy now. Pay later.
Pay in 4 interest-free payments of R 3,575.00 with Payflex.
Pay in 4 interest-free payments of R 3,575.00 with Payflex.
RCT 6000VA / 4800W Online Tower UPS, 4800W Online pure sine-wave UPS, 12V / 9Ah batteries x 16, Voltronic Power Winner Pro UPS
Specifications:
| Product Code | RCT-6000-WPTU
|
| CAPACITY | 6000 VA / 4800 W |
| PHASE | Single phase with ground |
| INPUT | |
| Input Voltage Range | 110-300 VAC (Based on load at 50%); 176-300 VAC (Based on load at 100%) |
| Nominal Voltage | 208/220/230/240 VAC |
| Frequency Range | 46~54 Hz or 56~64 Hz |
| Power Factor | >= 0.99 @ Nominal Voltage (100% load) |
| OUTPUT | |
| Voltage Regulation | ± 1% |
| Output Voltage | 208/220/230/240 VAC |
| Frequency Range (Batt. Mode) | 50 Hz or 60 Hz ± 0.1 Hz |
| Transfer Time : AC Mode to Battery Mode | Zero |
| Transfer Time : Inverter to Bypass | Zero |
| Transfer Time : Waveform (Batt. Mode) | Pure Sine Wave |
| Current Crest Ratio | 3::1 |
| Harmonic Distortion | <= 3% THD (Linear Load); <= 5% THD (Non-linear Load) |
| Frequency Range (Synchronized Range) | 46~54 Hz or 56~64 Hz |
| EFFICIENCY | |
| Battery Mode | 0.9 |
| AC Mode | 0.92 |
| BATTERY | |
| Long-run Model : Battery Type | Depending on the capacity of external batteries |
| Long-run Model : Charging Current (max.) | 1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries) |
| Long-run Model : Charging Voltage | 273 VDC ± 1% (Based on 20pcs bateries) |
| Long-run Model : Numbers | 16~20 (Adjustable) |
| Standard Model : Battery Type | 12 V / 9 Ah |
| Standard Model : Charging Current (max.) | 1A/2A |
| Standard Model : Charging Voltage | 218.4 VDC ± 1%, 273 VDC ± 1% |
| Standard Model : Numbers | 16, 20 |
| Standard Model : Typical Recharge Time | 9 hours recover to 90% capacity |
| INDICATORS | |
| LCD | Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
| ALARM | |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| ENVIRONMENT | |
| Operating Humidity | 0~95% RH @ 0- 50°C (non-condensing) |
| Noise Level | Less than 55dB @ 1 Meter |
| PHYSICAL | |
| Standard Model : Dimension, D x W x H (mm) | 369 x 190 x 688, 442 x 190 x 688 |
| Standard Model : Net Weight (kgs) | 61, 74 |
| Long-run Model : Dimension, D x W x H (mm) | 369 x 190 x 318 |
| Long-run Model : Net Weight (kgs) | 12 |
| MANAGEMENT | |
| Optional SNMP | Power management from SNMP manager and web browser |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC |
