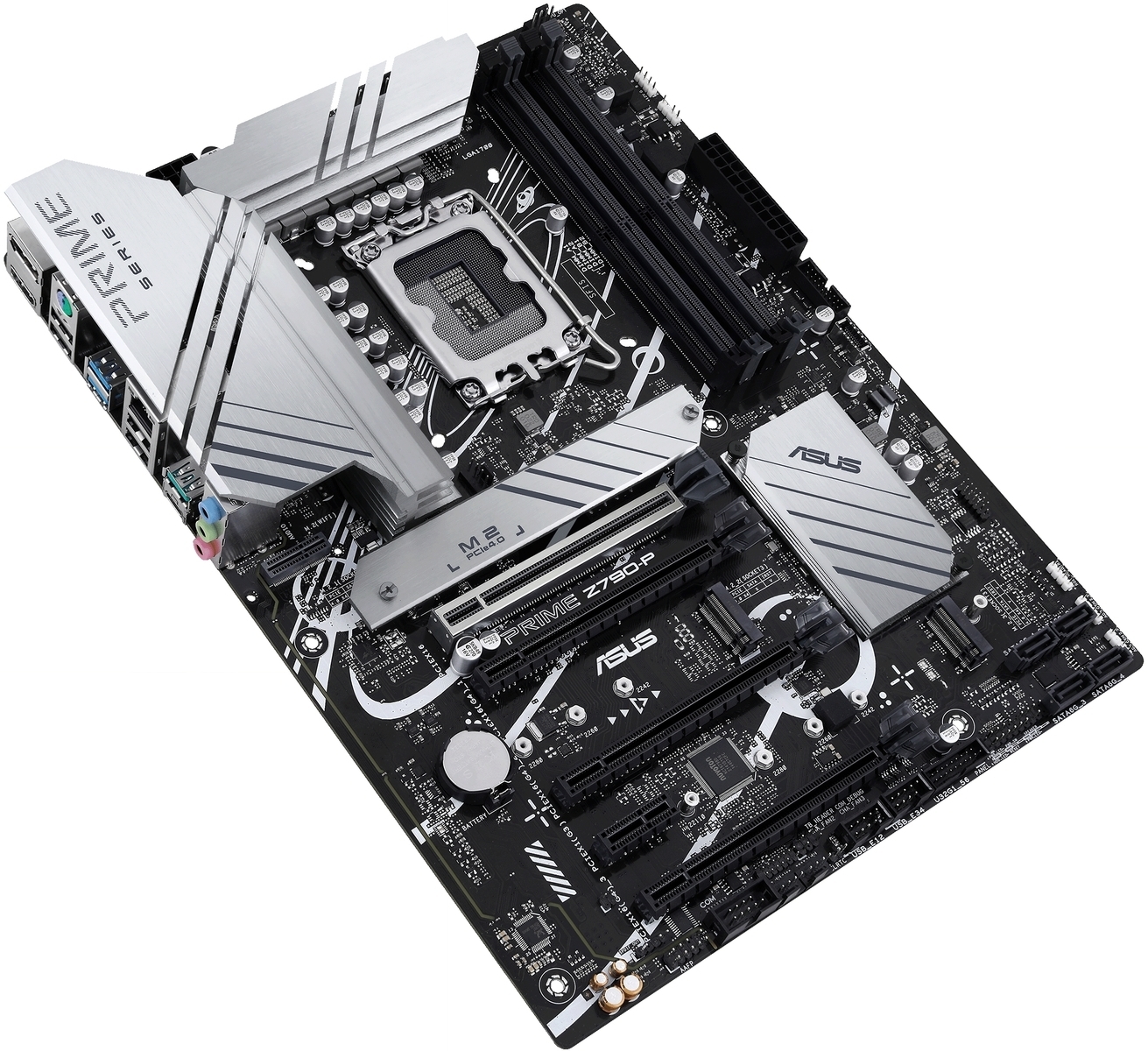

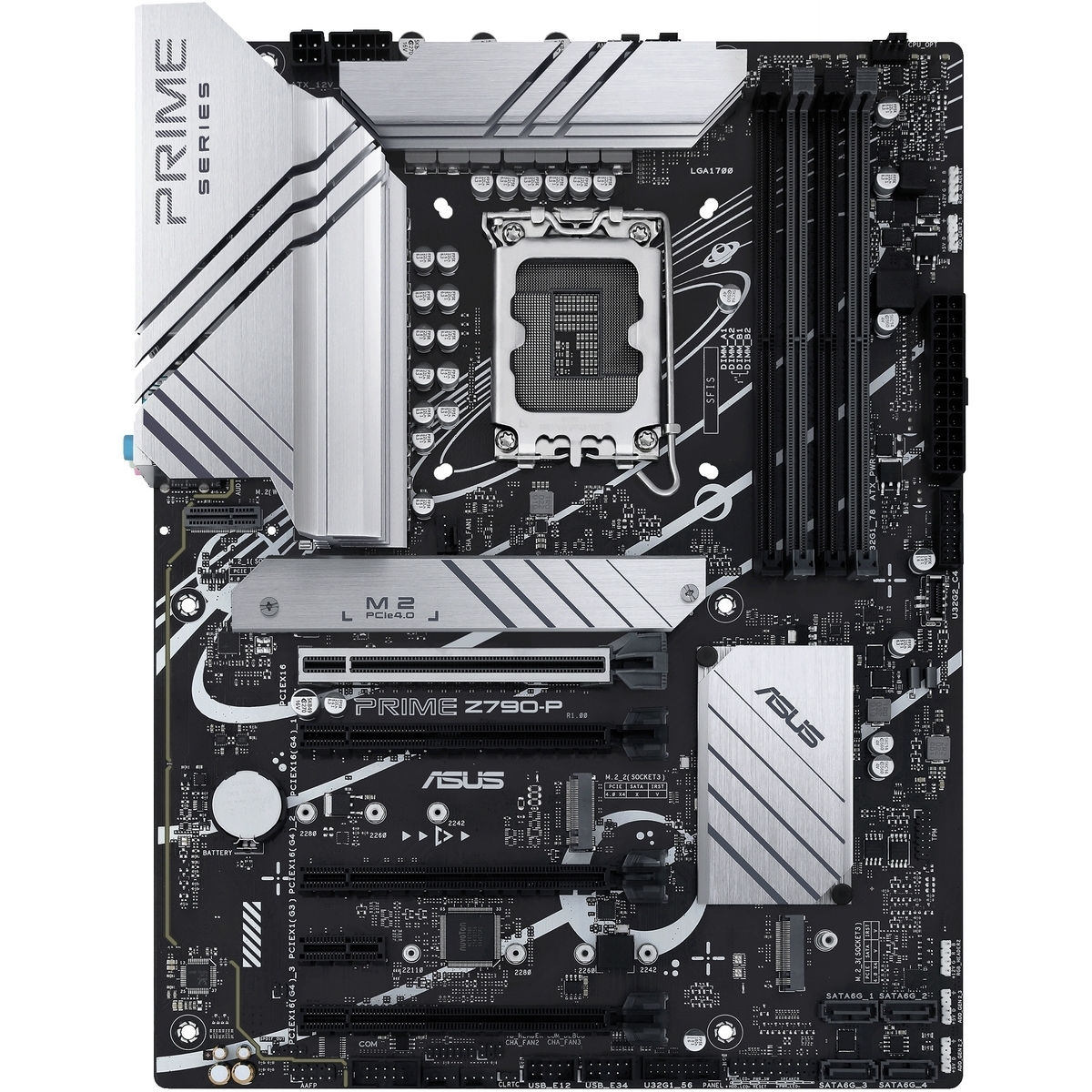

ASUS Prime Z790-P Motherboard

Asus Prime Z790-P Intel 12th / 13th Gen Socket LGA 1700 ATX Motherboard

Asus Prime Z790-P Intel 12th / 13th Gen Socket LGA 1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Memory slots, 1x DisplayPort, 1x HDMI Port, 1x PCI-e 5.0 x16 slot, 3x PCI-e 4.0 x16 slots (Support x4 mode), 1x PCI-e 3.0 x1 slot, 3x M.2 slots, 4x SATA 6Gb/s Ports, 1x Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Port (Type-C), USB 3.2 Gen 2 Port (Type-A), USB 3.2 Gen 1 Ports (Type-A), USB 2.0 Ports, Realtek 7.1 Surround sound High Definition audio, 3x audio jacks, 1x PS/2 Keyboard/Mouse combo Port

Features:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

• Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Expansion Slots- 1 x PCIe 5.0 x16 SafeSlot Core+- 3 x PCIe 4.0 x16 – 1 x PCIe 3.0 x1
• 14+1 DrMOS
• 4 x DIMM- DDR5 7200+(OC)- Dual Channel- AEMP II- OptiMem II
• 3 x M.2 Slots- 1 x M.2 22110 (PCIe 4.0 x4 mode)- 1 x M.2 2280 (PCIe 4.0 x4 mode)- 1 x M.2 22110 (PCIe 4.0 x4 & SATA modes)
• VRM Heatsinks
• One M.2 Heatsink for two M.2 Slots
• CPU Fan Headers
• AIO Pump Header
• CHA Fan Header
• Chipset Heatsink
• CHA Fan Headers
• 1 x Aura RGB Header
• 1 x Addressable Gen 2 Header
• 1 x Aura RGB Header
• 2 x Addressable Gen 2 Headers
• DisplayPort
• HDMI
• 2 x USB 2.0 ports (Type-A)
• 2 x USB 3.2 Gen 1 ports (Type-A)
• 2 x USB 2.0 ports (Type-A)
• Realtek 2.5Gb Ethernet
• 1 x USB 3.2 Gen 2×2 Type-C
• 1 x USB 3.2 Gen 2 port (Type-A)
• 3 x Audio Jacks
• 1 x Vertical M.2 slot (Key E)
• 1 x USB 3.2 Gen 1 Header
• 1 x USB 3.2 Gen 2 Type-C Connector
• Thunderbolt (USB4 ) Header
• 2 x USB 2.0 Headers
• 1 x USB 3.2 Gen 1 Header
• 4 x SATA 6Gb/s

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING
PRIME Z790-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks
Removable captive screws reduce risk of drops or loss during heatsink removal.

M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design
PRIME Z790-P features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

PERFORMANCE
The PRIME Z790-P motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel Core Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P is geared to cater to the demands of these high-core-count CPUs.

ProCool Connectors
Proprietary connectors augment the motherboard’s link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

CUSTOMIZATION
The PRIME Z790-P motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio – Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything youve ever experienced.

Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
Specifications:

© 2023 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site’s content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	90MB1CK0-M0EAY0
CPU	Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
	** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z790 Chipset
Memory	4 x DIMM, Max. 128GB, DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort
	1 x HDMI port
	*Graphics specifications may vary between CPU types.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	> Intel 13th & 12th Gen Processors* <
	1 x PCIe 5.0 x16 slot
	> Intel Z790 Chipset <
	3 x PCIe 4.0 x16 slots (support x4 mode)
	1 x PCIe 3.0 x1 slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
	> Intel 13th & 12th Gen Processors <
	M.2_1 slot (Key M), type 2242 / 2260 / 2280 / 22110 (supports PCIe 4.0 x4 mode)
	> Intel Z790 Chipset <
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242 / 2260 / 2280 / 22110 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	* Intel Rapid Storage Technology supports PCIe RAID 0 / / / 1 / / / 5 / / / 10, SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	Vertical M.2 slot only (Key E, CNVi & PCIe)
	*Wi-Fi module is sold separately.
USB	> Rear USB (Total 8 ports) <
	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	> Front USB (Total 9 ports) <
	1 x USB 3.2 Gen 2 connector (supports USB Type-C)
	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
	* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– Supports up to 24-Bit/192 kHz playback
	> Audio Features <
	– Audio Shielding
	– Premium audio capacitors
	– Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Vertical M.2 slot (Key E)
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	> Fan and Cooling related <
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	> Power related <
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	> Storage related <
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	> USB <
	1 x USB 3.2 Gen 2 connector (supports USB Type-C)
	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	> Miscellaneous <
	3 x Addressable Gen 2 headers
	2 x Aura RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-5pin System Panel header
	1 x Thunderbolt (USB4) Header
Special Features	> ASUS 5X PROTECTION III <
	– DIGI+ VRM (- Digital power design with DrMOS)
	– LANGuard
	– Overvoltage Protection
	– SafeSlot Core+
	– Stainless-Steel Back I/O
	> ASUS Q-Design <
	– Q-DIMM
	– Q-Slot
	– Q-LED Core
	> ASUS Thermal Solution <
	– Flexible M.2 heatsink
	– VRM heatsink design
	> ASUS EZ DIY <
	– ProCool
	> Aura Sync <
	– Aura RGB headers
	– Addressable Gen 2 headers
Software Features	> ASUS Exclusive Software <
	Armoury Crate
	– Aura Sync
	– Fan Xpert 4 (with AI Cooling II)
	– Power Saving
	AI Suite 3
	-TurboV EVO
	-PC Cleaner
	-DIGI+ VRM
	ASUS CPU-Z
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR
	> UEFI BIOS <
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash 3
	– ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	> Cables <
	2 x SATA 6Gb/s cables
	> Miscellaneous <
	1 x I/O Shield
	1 x M.2 Rubber Package
	2 x Screw packages for M.2 SSD
	> Documentation <
	1 x User guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	ATX Form Factor
	12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
