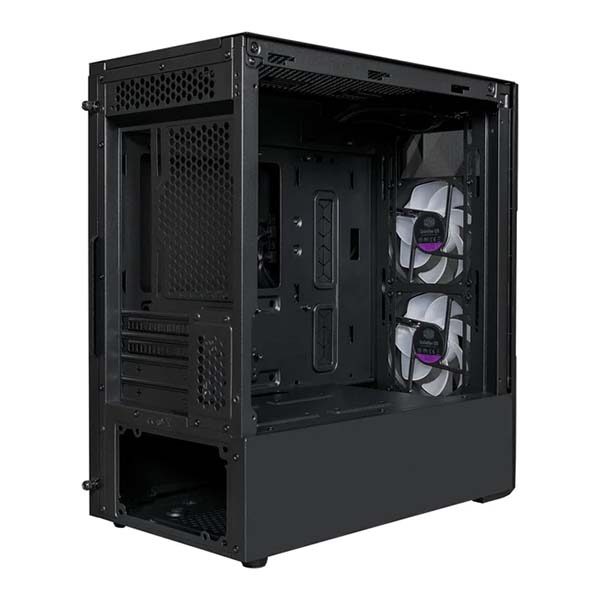

Cooler Master Masterbox TD300 Micro ATX Desktop Chassis

Cooler Master Masterbox TD300 Micro ATX Desktop Chassis

Features:

Postmodern Elegance
TD300 Mesh brings together modern presentation and performance with its three dimensional artistic mesh front panel. The polygonal diamond-cut facade emphasizes the illumination of two included SickleFlow PWM ARGB fans, cast various glowing effects, shifting based on the viewing angle. Cooler Master’s FineMesh technology simultaneously provides high airflow, dust filtration, and strengthened structure for maximum performance and effortless cooling. With the exclusive removable top panel, adaptable drive cage, and ample cooling support, TD300mesh provides a canvas of unlimited possibilities.

Polygonal Mesh
Crafted with Cooler Master’s FineMesh technology, the polygonal mesh features a three-dimensional contour, capable of simultaneously providing high airflow and excellent dust filtration.

Sickleflow PWM ARGB Fans Included
Pre-installed with two highly acclaimed 120mm ARGB Sickleflow fans, managed by the included Hub to easily customize a comprehensive ARGB lighting system and minimize ARGB port usage on the motherboard.

ARGB/PWM Hub
The included HUB features 5 ARGB and 4 PWM ports and facilitates cable management in the system, allowing you to conveniently control fans with a single connector for power and PWM signal and another for ARGB signal.

Removable Top Panel
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

Tempered Glass Side Panel
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.

Room For Upgrades
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.

Adaptable Drive Cage
The drive cage can be shifted towards the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.

Specifications:

Product Code	TD300-KGNN-S00
Model Number	TD300-KGNN-S00
Exterior Color	Black
Materials – Body	Steel, Mesh, Plastic
Materials – Side Panel	Tempered Glass
Dimensions (L x W x H)	366.5 x 210 x 410mm (Body Size), 433 x 210 x 420.5mm (incl. Protrusions)
Volume	38.24L (incl. Protrusions)
Motherboard Support	Mini ITX, Micro ATX
Expansion Slots	4
5.25″ Drive Bays	N/A
2.5″ / 3.5″ Drive Bays (Combo)	2
2.5″ Drive Bays	2
I/O Panel	2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB/PWM Hub
Pre-installed Fans – Top	N/A
Pre-installed Fans – Front	2x 120mm Sickle flow PWM ARGB Fans
Pre-installed Fans – Rear	N/A
Pre-installed Fans – Bottom	N/A
Fan Support – Top	2x 120mm / 2x 140mm
Fan Support – Front	3 x 120mm* / 2 x 140mm, *can only mount behind the front plate
Fan Support – Rear	1x 120mm
Radiator Support – Top	120mm, 140mm, 240mm, 280mm
Radiator Support – Front	120mm, 140mm, 240mm, 280mm
Radiator Support – Rear	120mm
Clearance – CPU Cooler	166mm
Clearance – PSU	325mm (w/o front radiator & drive cage), 140mm (drive cage in backmost position)
Clearance – GFX	344mm
Cable Routing – Behind Motherboard Tray	18-22mm
Dust Filters	Front, Top, Bottom
Power Supply Support	Bottom Mount, ATX
Series	MasterBox Series
Size	Mini Tower
