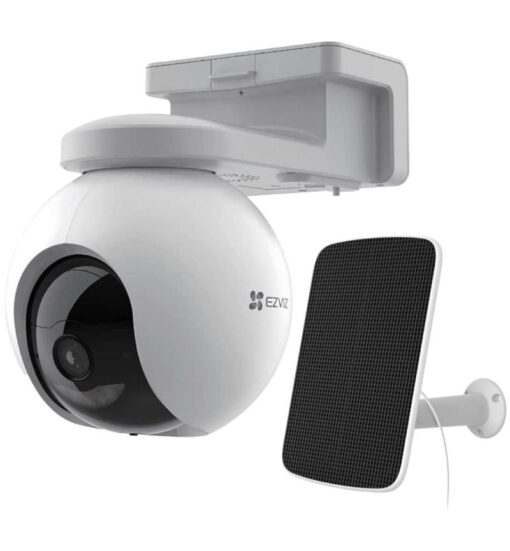

EZVIZ HB8 PT WIFI CAMERA + SOLAR PANEL

EZVIZ HB8 PT WIFI CAMERA + SOLAR PANEL – E-HB8SP

HB8 2K+ Battery – Powered Pan & Tilt Wi-Fi Camera

Specifications

Model : CS-HB8 (4MP)

Camera

Image Sensor: 1/3” 4-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)

Shutter Speed: Self-Adaptive shutter

Lens: 4mm @ F1.6 Viewing Angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical)

PT Angle: Pan: 340°, Tilt: 65°

Day & Night: IR-Cut Filter with Auto-Switching

DNR: 3D DNR

Night Vision: Up to 49 ft / 15 m

Video & Audio

Max. Resolution: 2560 × 1440

Frame Rate: 15fps. Self-Adaptive during Network Transmission

Video Compression: H.265 / H.264

Video Bit Rate: Quad HD; HD; Standard. Adaptive Bit Rate.

Audio Bit Rate   Self-Adaptive

Max. Bitrate       2 Mbps

Network

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz – 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Minimum Network Requirement: 4Mbps

Function

Detection: Smart Human Motion Detection

Two-Way Talk: Supports

General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage

Local Storage: Build-In 32GB eMMC Storage

Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription required)

General

Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F ), Humidity 95% or less (Non-condensing)

IP Grade: Weatherproof Design

Power Consumption: Max. 10W

Product Dimensions: 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)

Packaging Dimensions  216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)

Weight Net: 803 g (28.32 oz) With Package: 1060 g (37.39 oz)

Battery

Battery Capacity: 10400 mAh

Power Supply: DC 5V / 2A

In The Box

HB8 2K? Camera

Drilling Template

USB Cable

Screw Kit

Quick Installation Guide

Regulatory Information

Quick Start Guide

Certifications

Certifications: CE / FCC / WEEE / RoHS / REACH / UL
