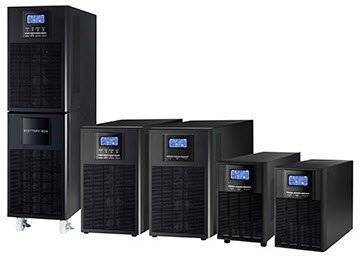

RCT 2400W Online Tower UPS

RCT 3000VA / 2400W Online Tower UPS, 2400W Online pure sine-wave UPS, 12V / 9AH batteries x 6, Voltronic Power Winner Pro Online pure sine wave UPS.

Specifications:

Product Code	RCT-3000-WPTU
CAPACITY	3000 VA / 2400 W
PHASE	Single phase with ground
INPUT
Input Voltage Range	55-150 VAC or 110-300 VAC (Based on load at 50%); 85-140VAC or 160-280VAC (Based on load at 100%)
Nominal Voltage	100/110/115/120/127VAC or 200/208/220/230/240VAC
Frequency Range	40Hz ~70 Hz
Power Factor	>= 0.99 @ Nominal Voltage (100% load)
OUTPUT
Voltage Regulation	± 1%
Output Voltage	100/110/115/120/127VAC or 200/208/220/230/240VAC
Frequency Range (Batt. Mode)	50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Transfer Time : AC Mode to Battery Mode	Zero
Transfer Time : Inverter to Bypass	4 ms (Typical)
Transfer Time : Waveform (Batt. Mode)	Pure Sine Wave
Current Crest Ratio	3::1
Harmonic Distortion	<= 3% THD (Linear Load); <= 6% THD (Non-linear Load)
Frequency Range (Synchronized Range)	47~53 Hz or 57~63 Hz
EFFICIENCY
Battery Mode	0.88
AC Mode	0.9
BATTERY
Long-run Model : Battery Type	Depending on the capacity of external batteries
Long-run Model : Charging Current (max.)	1A/2A/4A/6A (Adjustable)
Long-run Model : Charging Voltage	82.1 VDC ± 1% ,109.4 VDC ± 1%
Long-run Model : Numbers	6, 8
Standard Model : Battery Type	12 V / 9 AH
Standard Model : Charging Current (max.)	1A
Standard Model : Charging Voltage	82.1 VDC ± 1%
Standard Model : Numbers	6
Standard Model : Typical Recharge Time	4 hours recover to 90% capacity
INDICATORS
LCD	Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continuously sounding
ENVIRONMENT
Operating Humidity	20~90% RH @ 0- 40°C (non-condensing)
Noise Level	Less than 50dB @ 1 Meter
PHYSICAL
Standard Model : Dimension, D x W x H (mm)	421 x 190 x 318
Standard Model : Net Weight (kgs)	27.6
Long-run Model : Dimension, D x W x H (mm)	397 x 145 x 220
Long-run Model : Net Weight (kgs)	7.4
MANAGEMENT
Optional SNMP	Power management from SNMP manager and web browser
Smart RS-232/USB	Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC
