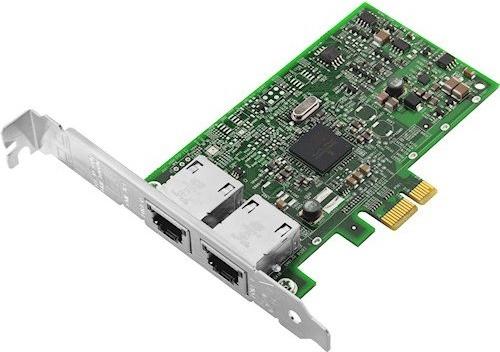

Lenovo ThinkSystem Broadcom 5720 Ethernet Adapter
R2,100
Only 1 left in stock
This item is also available in selected stores, give us a call or drop us a mail for more detailsLenovo ThinkSystem Broadcom 5720 1GbE RJ45 2-Port PCIe Ethernet Adapter
Overview:
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCIe and OCP adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
Features:
- One, two, or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
- Full line-rate performance across all ports
- Standard form factor adapters, either PCIe low profile or OCP 3.0 SFF
- PCI Express 2.0 host interface
- Jumbo Frames support (9600 bytes frames)
- Wake-on-LAN (WoL) support
- IEEE 802.1q VLAN support – provides enhanced network management and efficiency
- I/O virtualization (IOV) support for VMWare NetQueue and Microsoft VMQ – improves network performance in virtualized environments
- IEEE 802.3x flow control support
- IEEE 802.3ad link aggregation support
- IEEE 802.3 auto-negotiation support
- Automatic MDI crossover
- Receive and transmit side scaling
- TCP, IP, and UDP checksum offload
- Message Signaled Interrupts (MSI) and MSI-X support – Maximizes server processing performance by reducing CPU overhead and lowering interrupt latency
- On-chip temperature monitor (NetXteme I only)
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant – Reduces adapter power consumption by up to 42% through intelligent adaptive power management, adjusting power based on data traffic load. (NetXtreme I only)
- IEEE 802.3z (Clause 30) – Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (NetXtreme I only)
- IEEE 1588 Precision Time Control and 802.1AS time synchronization support – Provides greater accuracy of data packet delivery within the network (NetXtreme I only)
- Management using Broadcom Advanced Control Suite (BACS), Windows Management Instrumentation (WMI), and Broadcom Management API (BMAPI)
Specifications:
| Product Code | 7ZT7A00482 |
| Ports | 2-port |
| Part number | 7ZT7A00482 |
| Chipset | BCM5720 |
| RJ45 connectors | 2 |
| Host interface | PCIe 2.0 |
| PCIe Lanes | x1 |
| TOE support | No |
| iSCSI offload | No (SW Initiator) |
| Stateless offloads | Yes |
| Jumbo Frames | Yes |
| IEEE 802.1Q VLAN support | Yes |
| PXE Boot | Yes |
| iSCSI Boot | Yes |
| NIC Teaming | Yes |
| On-chip temperature monitor | Yes |
| IEEE 802.3az (Energy Efficient Ethernet, EEE) | Yes |
| IEEE 1588/802.1AS (Precision Time Protocol, PTP) | Yes |
| VMware NetQueue & Microsoft VMQ | Yes |
| Statistics for SNMP MIB II | Yes |
| Form Factor | Low profile |
