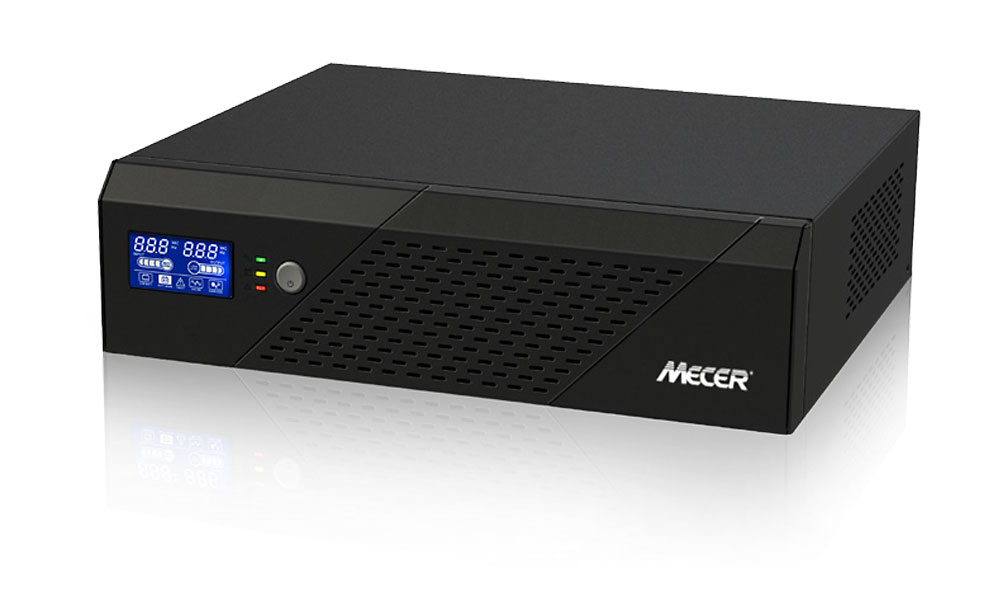

Mecer 1200VA Inverter – with LCD display

Mecer 1200VA, 720W, 12V DC-AC Inverter with LCD Display. *Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included. Requires 1x 12V deep cycle battery (not included) *Please take note of battery connection polarity, or the blade fuses will blow inside the unit (+ Red, – Black). Output: 3-pin South African sockets at back of unit (SANS 164-1). SOLAR NOT AVAILABLE.

Features:

• Simulated sinewave inverter
• Wide input voltage range
• 12VDC or 24VDC available
• Overload and short circuit protection
• LCD display for comprehensive information

Note: Connect RED cable to (+) on battery and the (+) on the unit, and BLACK cable to (-) on battery and the (-) on the unit. Place cable lug directly onto the battery terminal first, follow up with the washer and then the lock washer, and then the nut. Do not put a washer between the battery terminal and cable. Connect the positive cable first. Follow instructions in manual. Solar not available on 1200VA model.

FAQ:

Does this product function like a ups?

Yes, it does function similar to a UPS, without the constant beeping.

Can I have everything connected to it and as soon as electricity goes then it’ll power up from batteries and when electricity resumes it’ll get charged automatically?

Yes, you have 220V outlets, and you can leave everything plugged in. When power goes out, everything continues to work without interruption.

Specifications:

Product Code	IVR-1200LBKS
MODEL	IVR-1200LBKS
CAPACITY	1200VA/ 720W
INPUT
Voltage	230 VAC
Acceptable Voltage Range	90-280 VAC
Frequency	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	± 10%
Efficiency (Peak)	82%
Transfer Time	20 ms typical
Waveform (Batt. Mode)	Simulated sine wave
BATTERY & AC CHARGER
Battery Voltage	12 VDC
Floating Charge Voltage	13.7 VDC ±2%
Low Battery Alarm Voltage	10.2Vdc ±2%
Shutdown Voltage	9.9Vdc ±2%
Overcharge Protection	15.0Vdc ±2%
Maximum Charge Current	10 A or 20 A (Selectable)
SOLAR CHARGER (Optional)
Note	Solar Charge controller not included, will request to purchase separately
Maximum PV Array Open Circuit Voltage	40 VDC
Operating Voltage Range	15~18 VDC
Maxmum Solar Charge Current	50 A
PROTECTION
Full Protection	Overload, short circuit and polarity reserve protection
PHYSICAL
Dimension, D X W X H (mm)	300 x 360 x 88
Net Weight (kgs)	4.6
OPERATING ENVIRONMENT
Humidity	0 to 90% Relative Humidity(Non-condensing)
Operating Temperature	0 to 40
Storage Temperature	-15 to 50
