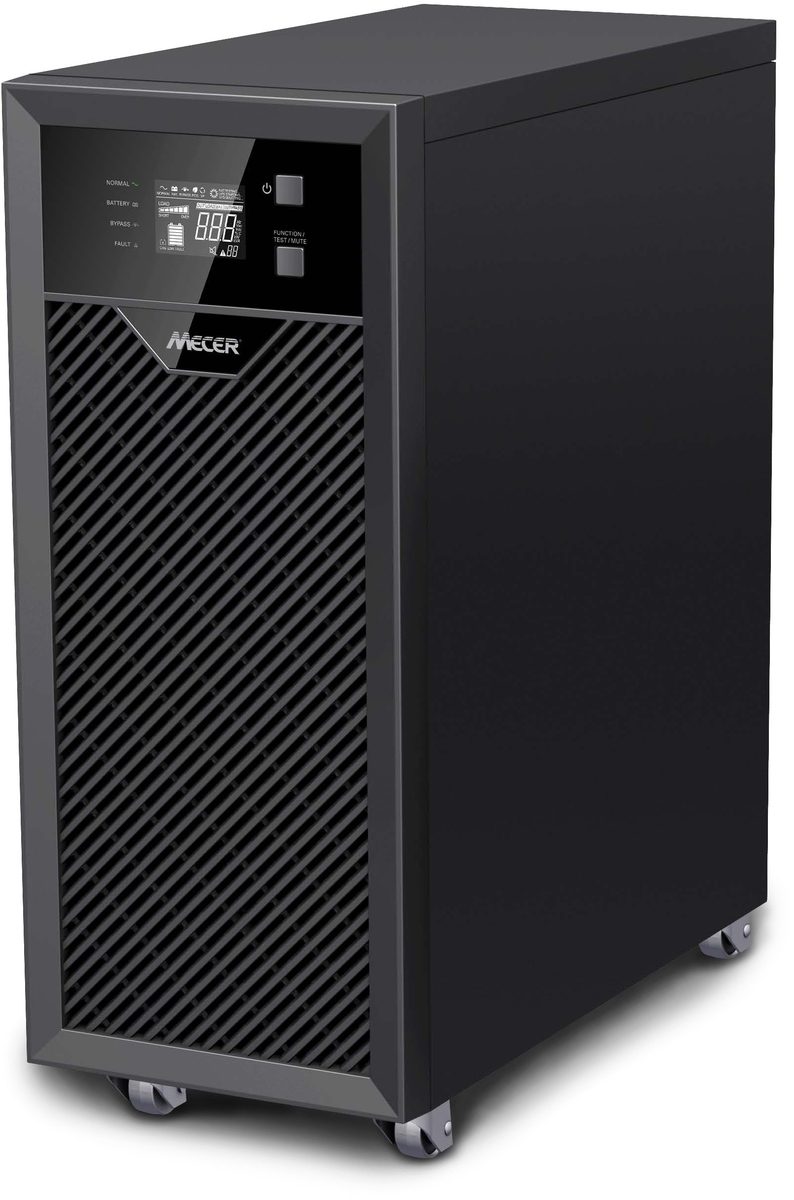

Name: Mecer 6000VA / 6000W On-line Pure Sine Wave UPS Tower
Brand: Mecer
SKU: ME-6000-WPTV
Availability: InStock

Mecer ME-6000-WPTV 6000VA / 6000W On-line Pure Sine Wave UPS – Tower, AVR, Monitoring Software + cable, Built-In Surge protectior

Specifications:


Specifications
Product Code	ME-6000-WPTVa
item	ME-6000-WPTV / ME-10000-WPTV
Dimensions WDH(mm)	248 x 500 x616 248 x500 x616
Weight(kg)	58.9 62.1
Power
Apparent Power(KVA)	6KVA / 10KVA
Active power(KW)	5.4KW / 9KW
Mains
Voltage range	120Vac-275Vac(phase to phase)
Current	32.1A max 52.6 A max
Frequency range	40Hz-70Hz
Power factor	0.99
Output
Rating Voltage	230Vac(±1%)
Rating Current	27A 45A
Frequency range	50Hz x (1±1%), Follow main power in phase lock range
Power factor	0.9
	105%-125%, load transfer to bypass mode after 10 min (0-30°C) or
	1min(30-40°C)
Output Overload	125%-150%, load transfer to bypass mode after 30s
Output Overload	Over 150%, load transfer to bypass after 0.5s
Load crest ratio	3:1( max)
THD	<2%( 100% Line load)
Enviromental and safety
EMC Standard	EN IEC 62040-2:2018 / EN 62040-2:2006 / IEC 62040-2:2016
Safety Standard	EN62040-1:2008+A1:2013
Operation
Operation	0-40 °C
temperature
Store temperature	-25 °C to 55 °C
Relative humidity	20% to 90%
Altitude	<1000m

Mecer 6000VA / 6000W On-line Pure Sine Wave UPS Tower
