Zebex Z-3100 2D Barcode Scanner

Zebex
SKU: Z-3100USB

Zebex Z-3100 2D Barcode Scanners is the upgraded version of the ZEBEX middle-range handheld CCD scanner with a faster scan rate, longer scanning depth, and better decoding ability.

R729

8 in stock

Stock Information

Scroll Location

Compare

Description

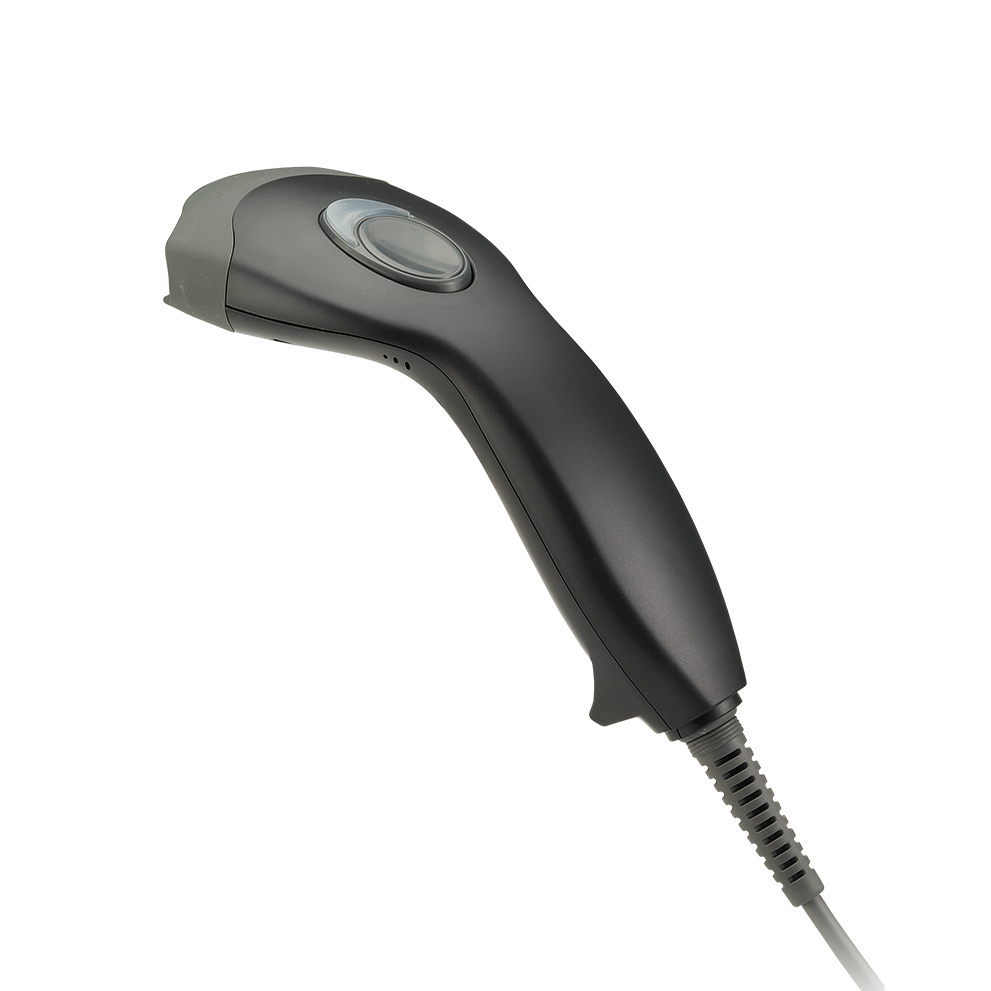

Zebex Z-3100 2D Barcode Scanner

Linear Image Handheld Scanner

Zebex Z-3100 2D Barcode Scanner is the upgraded version of the ZEBEX middle-range handheld CCD scanner with a faster scan rate, longer scanning depth, and better decoding ability. At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar. It has a working range of up to 300 mm and can decode a barcode wider than 102 mm.

  • Proprietary Ultrascan decoding technology
  • Streamline design and Large trigger for effortless operation
  • 32-bit microprocessor unit
  • Analog image capture technology

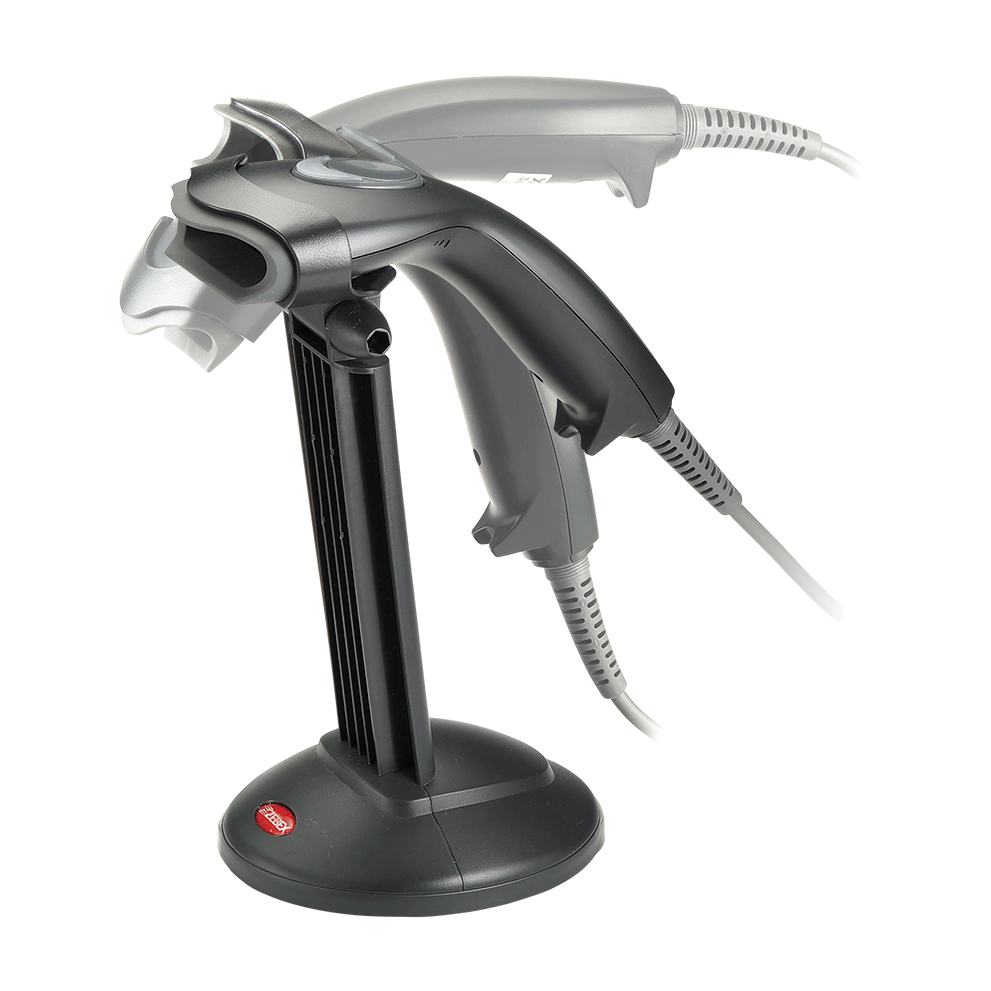

  • Support presentation scan mode
  • 0 – 100,000 Lux light immunity
  • Captures barcodes on mobile phone, tablet, or computer screens

Z-3100 Linear Image Handheld Scanner

Specifications

Operational

Light Source
617 nm visible LED

Optical System
Linear CCD array

Microprocessor
32-bit

Depth of Field
4 mil: 0 – 60 mm
5 mil: 0 – 100 mm
7.5 mil: 0 – 180 mm
10 mil: 0 – 220 mm
13 mil: 0 – 300 mm
20 mil: 0 – 350 mm
Note: DOF may vary depending on environmental conditions and barcode quality.

Scan Angle
42°

Scan Rate
330 scans per second

Print Contrast
30% @ UPC/EAN 100%

Indicator
Blue LED

Programmable Operation
Programmable tone & beep time

System Interface
Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS





Z-3100 Linear Image Handheld Scanner
